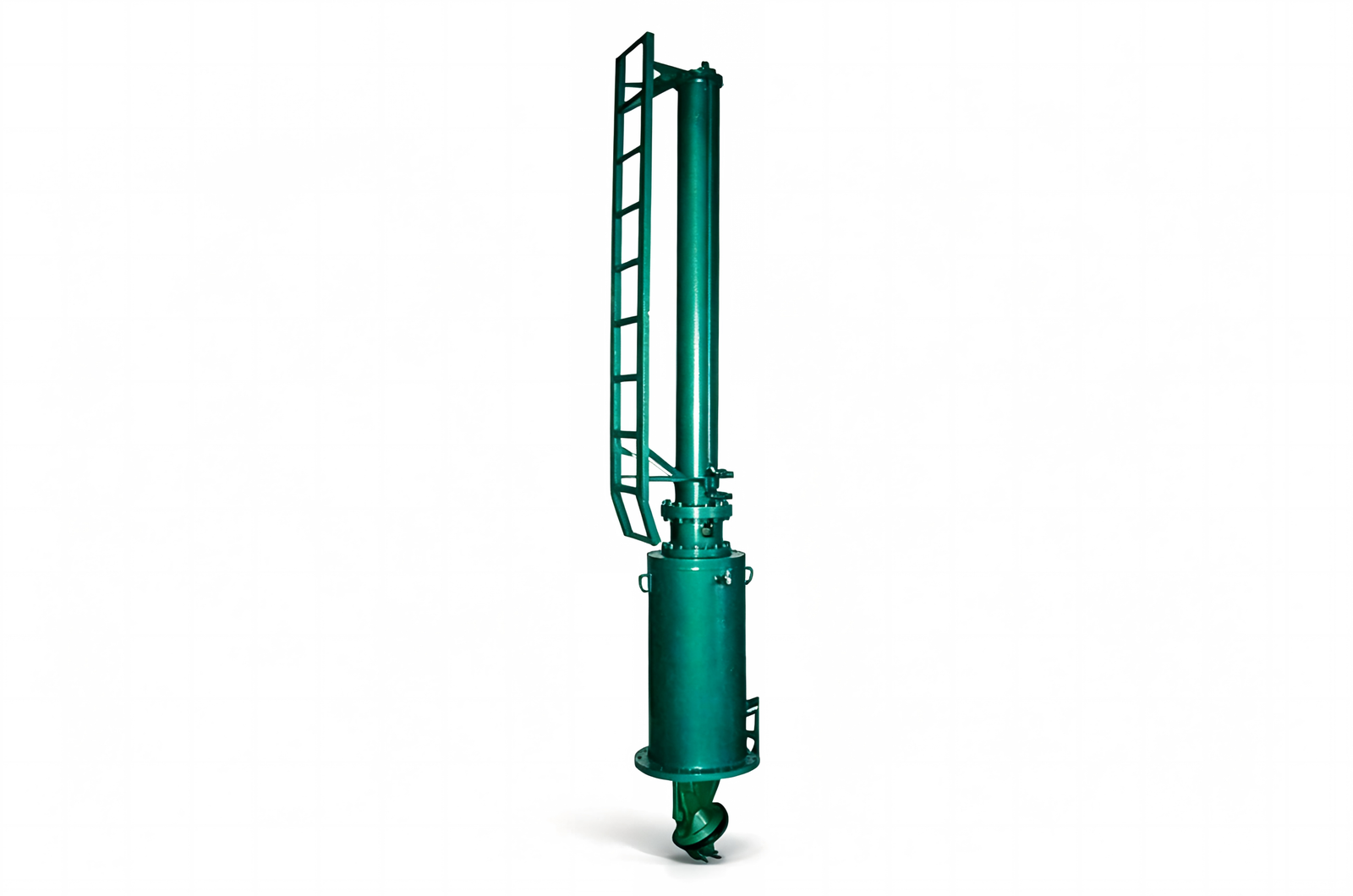

Hydraulic Line Stop Machine
Description
Hydraulic Line Stop Machine is used to send Line Stop Heads into pipeline to stop the flow in the line. Suit for flammable, explosive crude oil, natural gas, LNG, Coal Gas, Water and etc.
| Model | Applied size | Main shaft diameter | Maximum stroke | Transmission mode | Applied pressure |
|---|---|---|---|---|---|
| FD300 | DN200～DN300 8”～12" | φ90mm | 1750mm | hydraulic | ≤100bar |
| FD500 | DN350～DN700 14"～28" | φ140mm | 2700mm | hydraulic | ≤100bar |
| FD1000 | DN800～DN1200 32"～48" | φ190mm | 3700mm | hydraulic | ≤100bar |
